ION AIR SHOWER UNIT
Clean Space ConstructionAir Shower

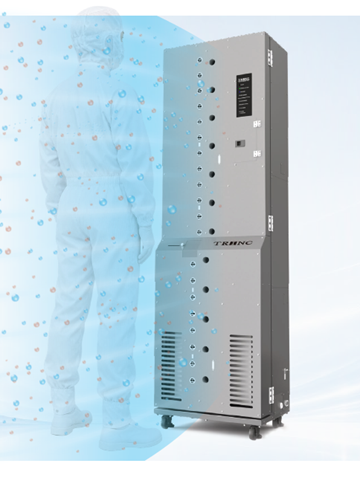

ION AIR SHOWER UNIT

ION AIR SHOWER UNIT : TAS-0451 IAS-SD
ION AIR SHOWER UNIT POWER-INTENSIFIED MODEL : TAS-0453 IAS-PI
ION AIR SHOWER BOX : TAS-0454 IAS-BX

Portable, high-performance air shower: powerful, uniform full-body cleaning with ion air blow

Features
Dust removal from head to sole
No equipment construction required
Available in various situations
High dust removal rate
Applications
Electronics & Electronic Components
Film Manufacturing
Medical, Biotechnology & Food
Printing / Coating
Chemicals & Pharmaceuticals
Other Industries

Feature details

Achieves uniform cleaning that was impossible with conventional air showers

Air blow nozzles evenly distributed from head to toe achieve uniform cleaning that was impossible with conventional air showers. Because the air contains a dense concentration of ions, it effectively removes foreign particles while neutralizing the static electricity that causes them to adhere.

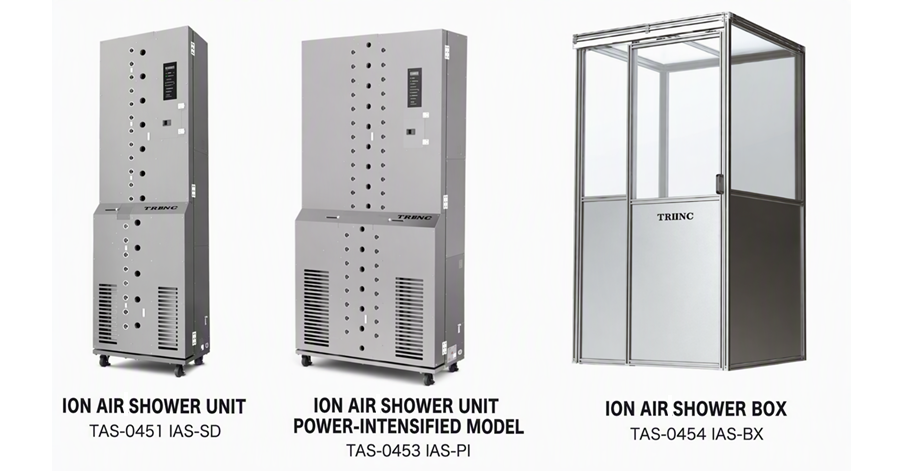

Standard and High-Power Models: Installation-Free Ion Air Shower Box

We have introduced a lineup of two models: a Standard Model that is space-saving, runs on a 100/120/220V power supply, and offers excellent portability, and a High-Power Model that offers improved dust removal performance through a narrower nozzle pitch and increased air blow speed. Combined with the installation-free Ion Air Shower Box, a high-performance air shower can be set up anywhere.

Standard and High-Power Models: Installation-Free Ion Air Shower Box

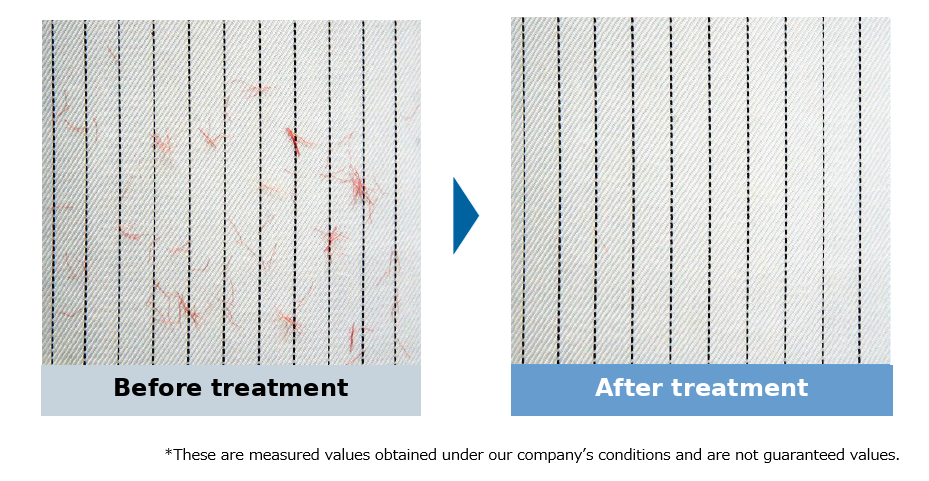

Powerful dust removal with high-speed air blow containing dense ions

Air containing dense ions removes foreign particles while neutralizing static electricity. Thanks to its high static elimination capability and powerful air blow, it can now thoroughly remove foreign particles that adhere stubbornly due to static electricity, which conventional systems could not fully remove. In dust removal tests, a high removal rate of 92% was measured.*

Powerful dust removal with high-speed air blow containing dense ions

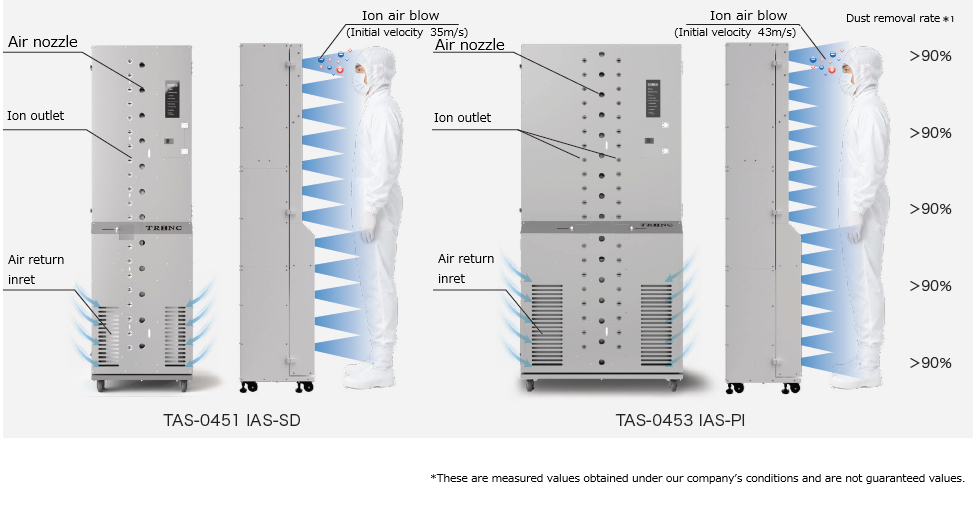

Uniform, thorough dust removal from head to toe

・No Missed Spots with Evenly Distributed Nozzles
Air nozzles are evenly arranged from head to shoes, enabling consistent, uniform cleaning no matter how the operator moves.

・Thorough Removal of Foreign Particles Below the Knees
In conventional air showers, the intake ports are located below the knees, making it impossible to remove dust from this area, which is the dirtiest part of the human body. This unit maintains a high dust removal rate even below the knees, dramatically reducing the amount of foreign particles carried into the clean area.

・High Dust Removal Rate Achieved by Powerful Ion Air
The unit delivers an air blow more powerful than that of general air showers. Combined with dense ions, it provides outstanding dust removal performance.

Uniform, thorough dust removal from head to toe

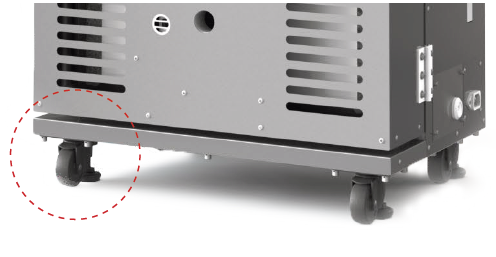

Ready to use right away with no installation work, and easy to move anywhere

Unlike typical air showers, no installation work is required: simply place the unit and it is ready to use. In addition, the Standard Model runs on a 100/120/220V AC power supply, so it can be used anywhere regardless of location. The standard-type unit is compact, measuring W490 x D360 x H1,700 mm, so it takes up little space and can be installed comfortably even in tight areas. The unit is also equipped with casters, allowing it to be easily moved to any location where it is needed.

Ready to use right away with no installation work, and easy to move anywhere

Product number (model number/format)

TAS-0451 IAS-SD
TAS-0453 IAS-PI
TAS-0454 IAS-BX
