PRODUCTS
TRINC ION AIR-SHOWER KIT
TAS-1465 ASK-F / TAS-1469 ASK-F-CE
TAS-1467 ASK-FW / TAS-1470 ASK-FW-CE (Wide)
DOOR-LESS ENVIRONMENTAL CLEANING TRINC ION AIR-SHOWER KIT
for CLREANROOM (FOR ULTRACLEAN ENVIRONMENT)
TAS-1466 ASK-F-UCE / TAS-1466 ASK-F-UCE-P
TAS-1468 ASK-FW-UCE / TAS-1468 ASK-FW-UCE-P(wide）

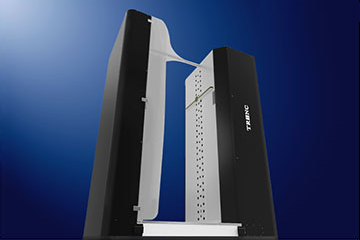

Movable doorless high-performance air shower
Thorough, uniform full-body dust removal from head to shoe soles with ion air blow
Dust removal from head to sole
Dust can also be removed from incoming materials
No equipment construction required
Available in various situations
High dust removal rate
Feature details

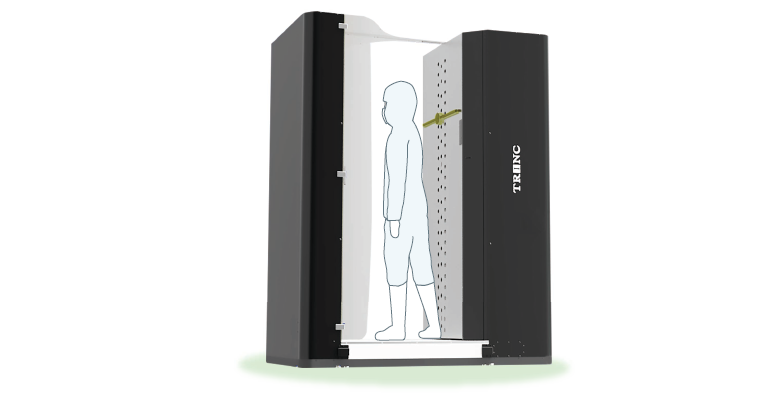

Dust removal performance far superior to conventional air showers
StatiStatic elimination with dense ion increases the dust removal efficiency drastically. Foreign matter attached to the garments that cannot be removed by the conventional air shower can be removed. That is why overwhelming dust removal rate of 92% (measured value)＊1 can be achieved.
Remove dust thoroughly from head to shoe soles
Since conventional air shower has intakes downside, foreign matter adhering below the knees, where is the dirtiest area of worker, cannot be removed. (Dust removal rate 0%) Since TRINC ION AIR SHOWER KIT cleans the person from head to shoe soles evenly, it greatly reduces the foreign matter brought into the Cleanroom.
High speed continuous processing

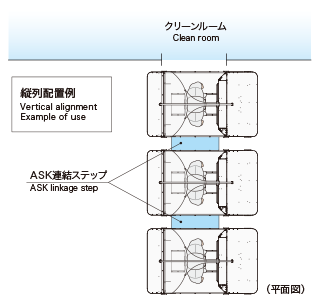

The door-less structure and quick removal of foreign matter enable high-speed and continuous cleaning. It has about three times the processing capacity compared to the conventional one, which can reduce the waiting time and long queues. Furthermore, if you arrange the devices in-line and operate simultaneously, the processing capacity will be dramatically improved.

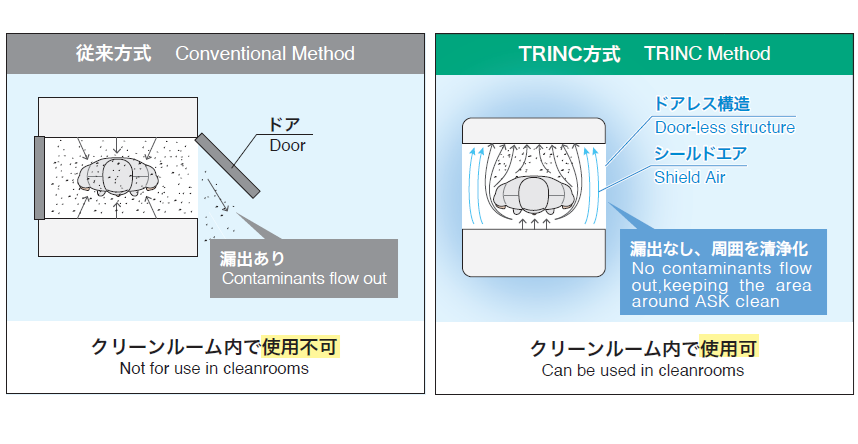

Prevents Contaminant Leakage and Helps Keep the Surrounding Environment Clean
[Conventional System]
Dust inside the unit swirls around on turbulent airflow generated by air blown from multiple directions. As a result, there was a risk that dust not completely collected could escape into the cleanroom together with the operator the moment the door was opened.
[TRINC System]
Our proprietary airflow control technology combines dust-removal air blow with shield air that prevents dust from escaping outside, enabling complete collection of removed dust while preventing external leakage. In addition, surrounding air is also drawn in and purified, improving the cleanliness of the surrounding environment simply by installing the unit.

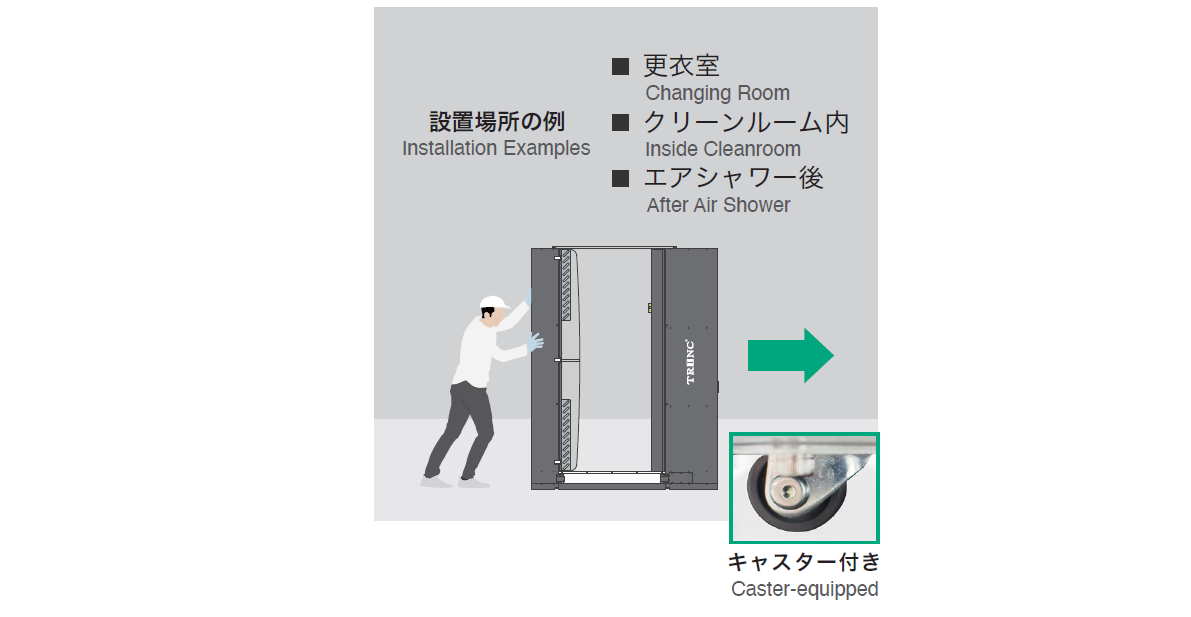

Design Adaptability, Mobility, and Aesthetic Integration
Designed with consideration for various operating environments, this unit can be used in a wide range of spaces including cleanrooms, hospitals, and offices. Its exterior features an aesthetically refined design that blends seamlessly with different surroundings.
Additionally, equipped with casters on the base, the unit can be easily relocated even after installation, allowing flexible use wherever it is needed.
Construction is not required / Movable with casters
No construction work is required because the product can be assembled and disassembled by the user themselves. Since no construction period is required, there is no need to stop the current factory, and the total cost of the equipment and construction work is about 1/2 of the conventional cost. In addition, the included casters make it easy to move or change the layout after assembly.
1. Low dust removal rate
Due to structural prolems and dust removal methods, the dust is not sufficiently removed form the worker.
2. Contaminate the cleanroom
Dust from the air shower will leak outside the air shower and contaminate the cleanroom.
3. Low Process capacity (speed)
Opening and closing the door takes time and creates a long line at the start of the workday.
4. Door malfunctions
Due to the enormous number of times the door is opend and closed, door breakdows occur frequently.
5. Need emergency power
An emergency power supply must be provied to prevent interlock-controlled doors from obstructing people's evacuation in the event of disaster.
6. Large-scale construction work is required for building structers
In the past, it was more of a building stracture than a device, requiring construction or building modification.
7. Factory shutdown is required
In the past, it was necessary to shutdown the factory to modify the cleanroom.
Cleans the entire body from top of the head to the shoe soles
